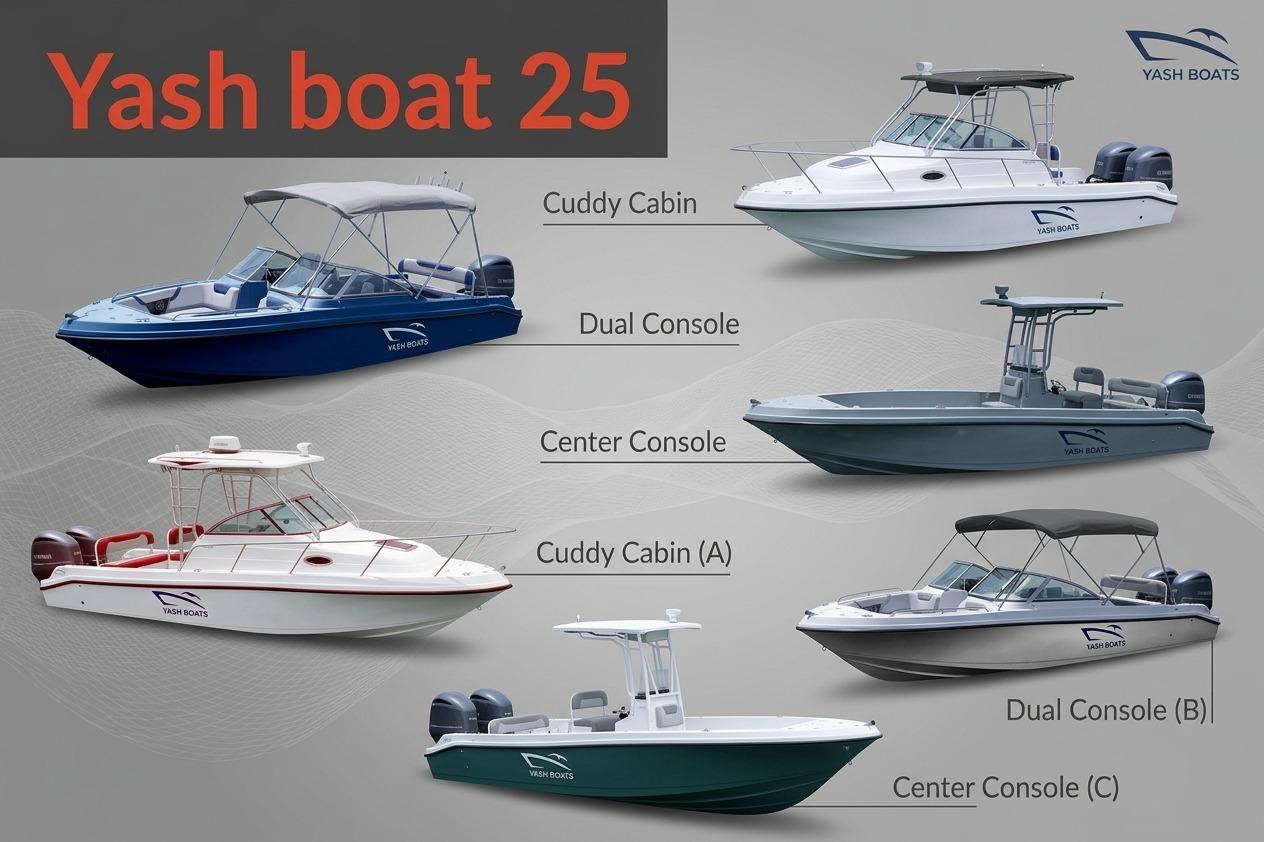

25 ft Fishing Boat

The Yash Boat Sea Catch is a multi-purpose boat designed to operate offshore areas.With its deadrise hull and Fiber material construction, the 25 Sea catch offers outstanding performance in both calm and rough waters. It is an ideal boat for fishing,leisure and adventure.

  • Specification
  • ModelDetails

Length Overall (LOA)

7.62 m (25.0 ft)

Beam (Max)

2.40 m

Draft (Design)

0.36 m (lightship)

Displacement (Lightship)

1,200 kg

Engine

Outboard 150 – 200 hp

Fuel Capacity

80 GAL

Fresh Water Capacity

30 GAL

Maximum Persons

6 persons

Principle Dimensions

  • LENGTH 25ft (7.62m)
  • BREADTH 8ft (2.44m)
  • DRAFT (DESIGN) 1ft 3 (0.40m)
  • LIGHT SHIP DISPLACEMENT 1600kg
  • MAX DISPLACEMENT 3200kg
  • LOAD CAPACITY 1000kg
  • NO. of PASSENGER 8Nos
  • ENGINE POWER (MAX) 200 -300 HP
  • SPEED (MAX) 30 - 35 Knot

Detailed Description

The Yash Boat Sea Catch is a multi-purpose boat designed to operate offshore areas. With its deadrise hull and Fiber material construction, the 25 Sea catch offers outstanding performance in both calm and rough waters. It is an ideal boat for fishing, leisure and adventure.


Hull Design

Thanks to its hull design with high aft deadrise that transitions to a sharp V- shape entry, the 25-sea catch operates in rough offshore condition yet still provides a comfortable, dry ride in rough waters. With power options up to 200 HP outboards, the 25- sea catch is surprisingly quick. Yash Boat is an OEM installer for all major engine brands and can equip the 24 Sea Catch as required to suit virtually any customer preference.

Deck Layout

The 25 Sea Catch features a wide-open layout, with a large flat non-skid floor, mid-level freeboard. A durable aluminum and rubber fendering system adds even more utility, without robbing valuable floor space. Other operation -enhancing features of the 25 Sea Catch include a large non-skid forward working platform, console, top, and seating options, and ample stowage space.

Console & Helm

The 25 Sea Catch features a fiber console with integrated welded aluminum frame with hard top. A fixed windshield glass provides optimum protection and visibility. A medium size dash houses all electronics, and controls and are easily accessible to the operator. Like all Yash Boats, the 25 Sea Catch is a fully custom Boat that is built to order, so the customer may determine the dash components as well as their layout.

Seating

The 25 Sea Catch is available with aft and bow seating options. The seat is integrated into a fiber base housing two large locking storage lockers, which may be configured for general storage.



STANDARD FEATURES

  1. White Gelcoat Standard Color

  2. Yash Boat (including Console with Windshield, Fiber Captain Seat/Sofa)

  3. Fuel Tank

  4. Water Tank

  5. Rubber/ Aluminum Fender

  6. Full-Width Aft Fiber Seat/Sofa

  7. Hull Fitted Ice Box

  8. 3nos U bolt

  9. Fresh Water Transom / Bow Shower

OPTIONS & UPGRADES

  1. Aluminum Canopy frame type (Powered Coated) with tarpaulin

  2. Aluminum Back Rest

  3. Bow seating sofa

  4. 25feet Galvanized Trailer with four tyres

  5. Live well tank back side/driver seat (with pump)

  6. Toilet Console with full option

  7. Switch Panel

  8. Bilge Pump

  9. Sound System

  10. Gunwale Rod holders

  11. Electrical / Lighting system

  12. Bow stainless rails

  13. Water pump

  14. Sea Deck

  15. Motor (Yamaha, Suzuki, Mercury)

  16. Propulsion and Steering Gears equipment

  17. Helm equipment

  18. Comm and Navigation Equipment

  19. Safety Equipment

  20. Any other Gelcoat Standard Color

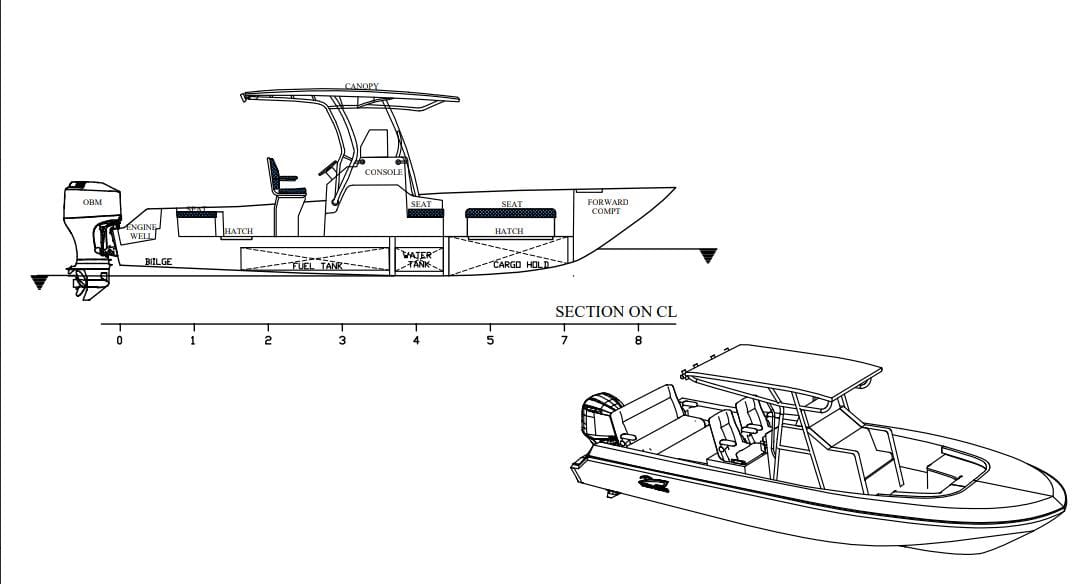

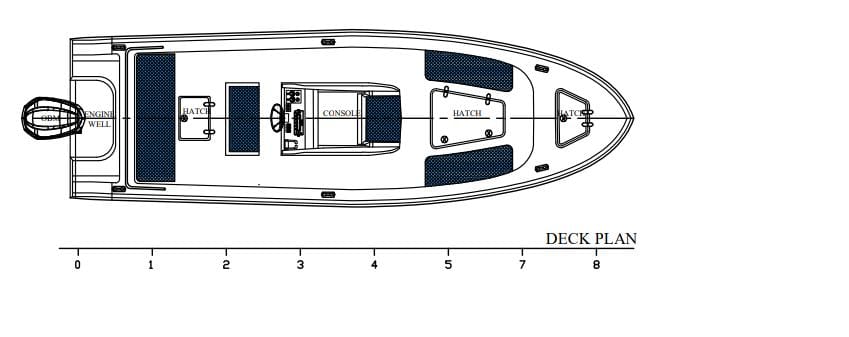

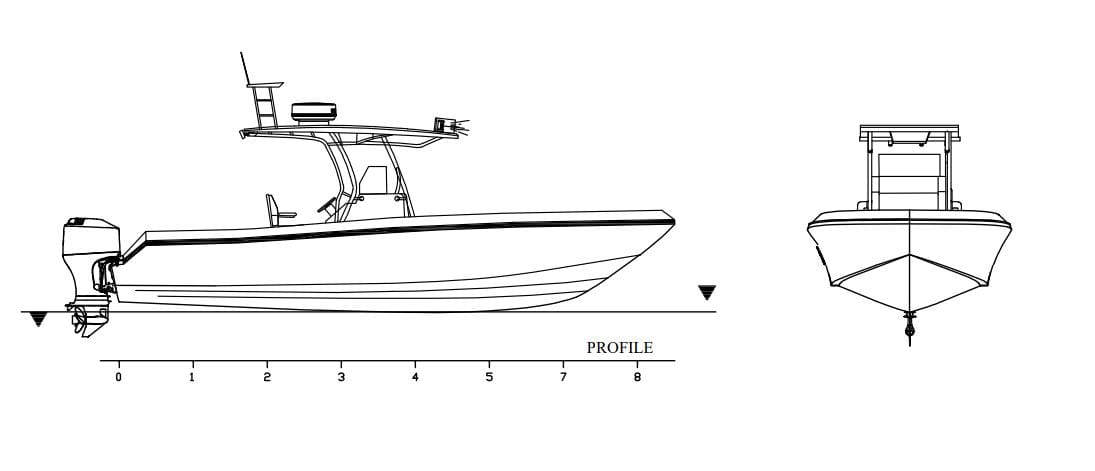

Product Drawings
